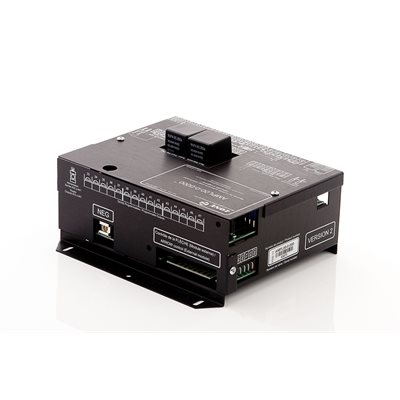

Zone Technologies Amplifier for Undercover Vehicle

Product Code: AMPL00-0-0000

Specifically designed for marked and unmarked vehicles,

the AMPLTM module allows effective control of all accessories

required in any emergency situation.

Ideal for controlling accessories such as :

  • Lightbar Traffic advisor
  • Siren Gun lock machanism
  • Light modules etc.



INTERGRATED FUNCTIONS



  • 8 independant outputs for lightbar or emergency light control
  • 7 dedicated blackout relays (front and rear lamps)
  • 9 selectable tones siren output (58 or 100 Watts)
  • Front and rear Wig-Wag outputs

               - Programmable speed and flash pattern

               - No external device required

  • Programmable gun lock activation output
  • Siren control transferable to horn activation switch
  • PA microphone input

Operating voltage :            10 to 16Vdc

Operating temperature :   -40oC to 75oC (-40oF to 167oF)

Current draw :                           Standby, no ignition : 1mA

                                                   Activated (no load), with ignition : 350mA



Available outputs :

- Lightbar :                                 8 outputs .................................. 10A (each)

- Front Wig-Wag :                     2 outputs .................................. 30A (each)

                                                         2 outputs .................................. 10A (each)

- Rear Wig-Wag :                        2 outputs .................................. 10A (each)

- Blackout (head lamps) :          1 output .................................... 30A

- Blackout (remaining lamps) :  2 outputs .................................. 10A (each)
